Slät XL

Basotect acoustic panels, panels of 1200 x 600mm (thickness of 40mm).

Fast, easy installation with Skac Adhesive; sold by units!

Basotect® acoustic foam, color: white, light grey or RAL; Fire rating: Class 1, Bs1d0.

More details...

Availability : Available


30,00 € VAT incl.


logo_imagen

Accessories Slät XL


logo_imagen

What are they?

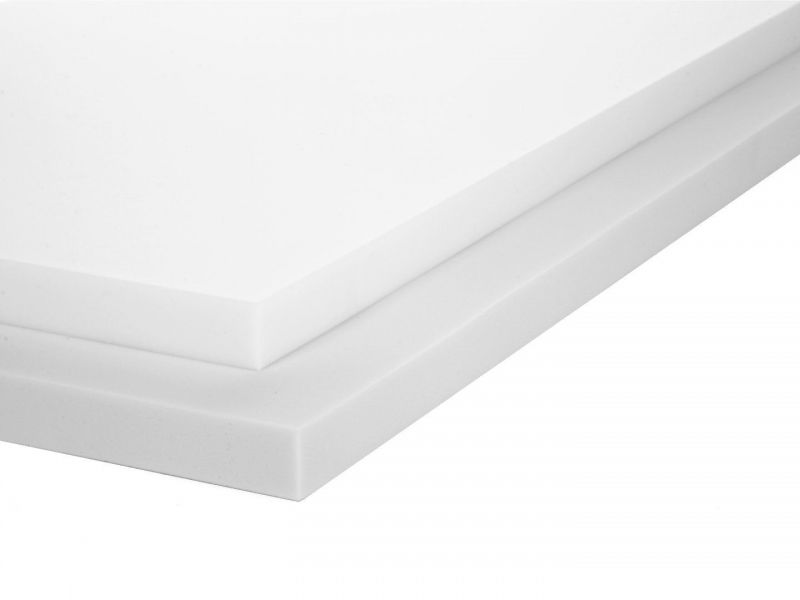

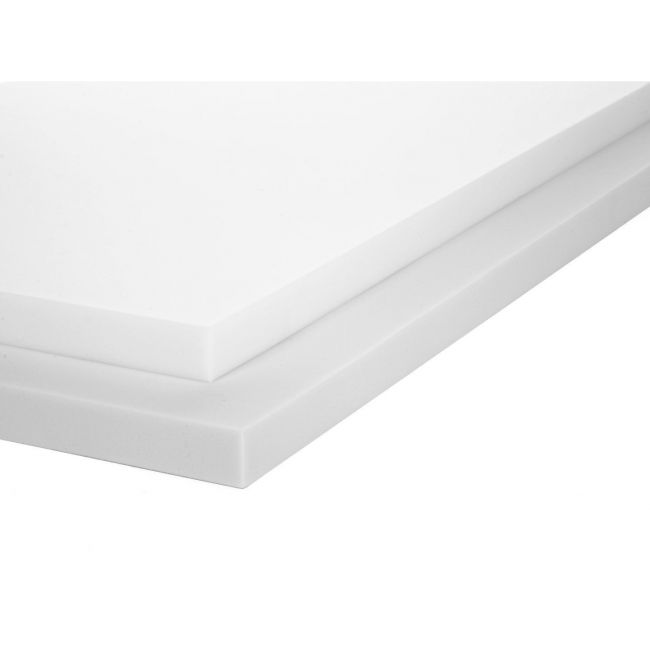

The Basotect® SLÄT XL acoustic panel is a sound-absorbent, fireproof, smooth, rectangular acoustic panel with a 1200 x 600 mm format and a thickness of 40 mm. It is specially indicated to solve problems of high reverberation in restaurants, offices, classrooms, sports centres, dance academies, schools, etc.

Made from Basotect® fireproof acoustic foam(a melamine resin foam), with high sound absorption, high durability and a Class Bs1d0 fire rating. In the event of fire, it does not drip or produce toxic gases.

The panel proportions have been optimised to obtain the best cost/performance ratio, with an extremely easy and fast adhesive system with our Skac Adhesive.

® Registered trademark of BASF SE

Important!

Basotect acoustic absorbent panel with Class Bs1d0 (fireproof) fire rating.
Product suitable for installation in public establishments. Compliant with the Technical Building Code fire requirements.

What is the application used for?

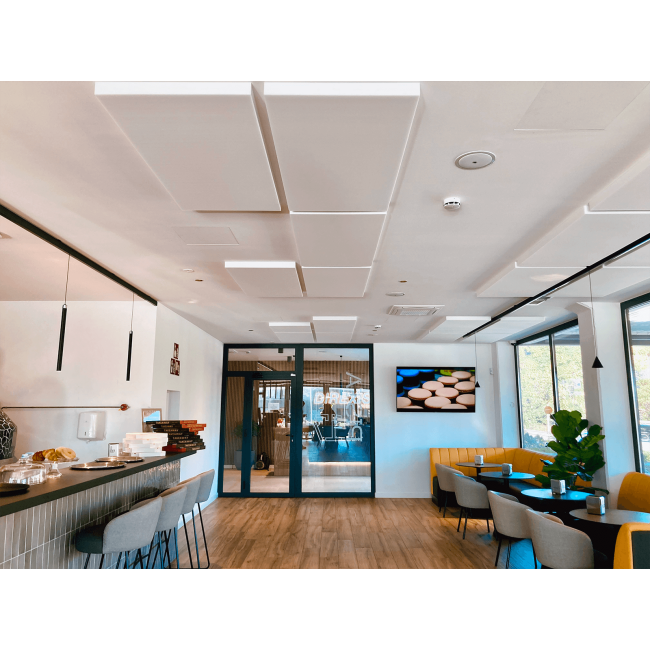

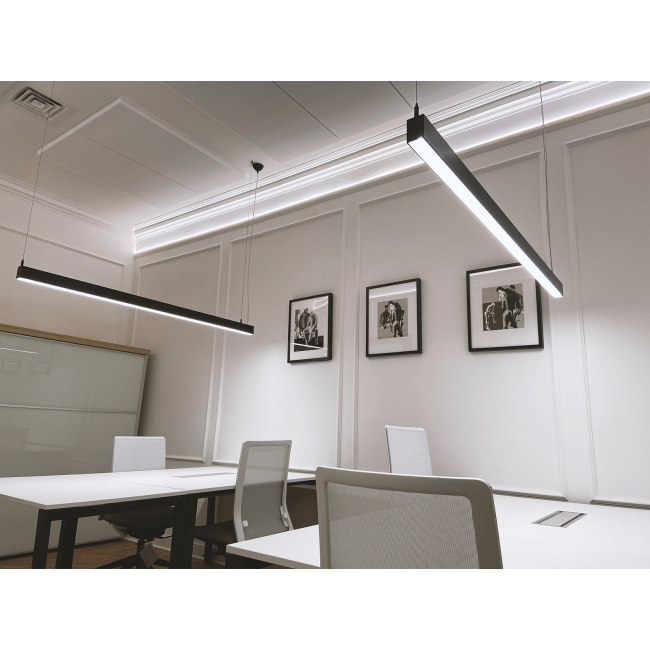

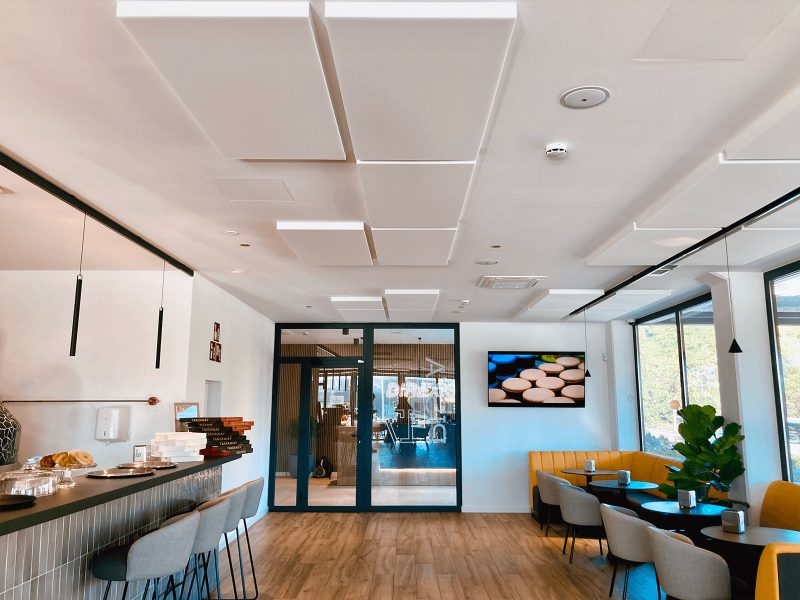

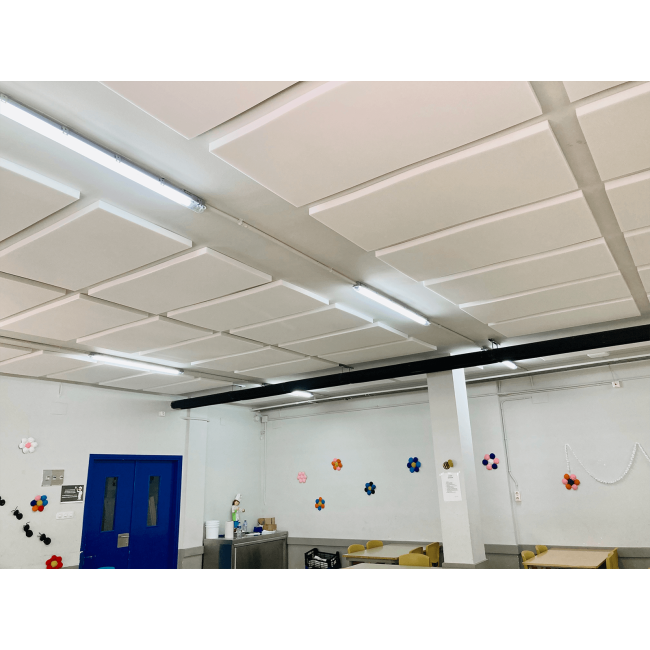

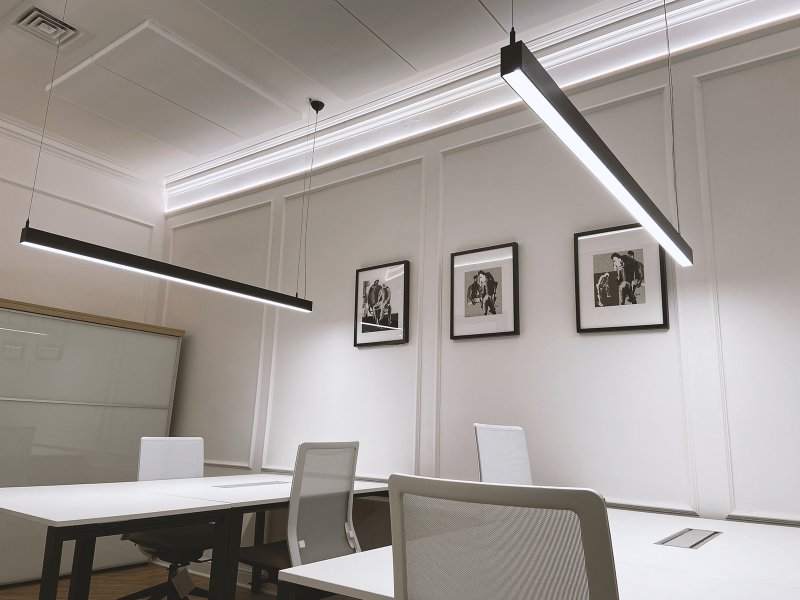

The SLÄT XL is an acoustic conditioning solution that is easy to install, with no work being required, developed to quickly and economically solve problems of high reverberation that normally exist in large spaces such as restaurants, cafeterias, classrooms, school dining rooms, offices, conference rooms, etc.

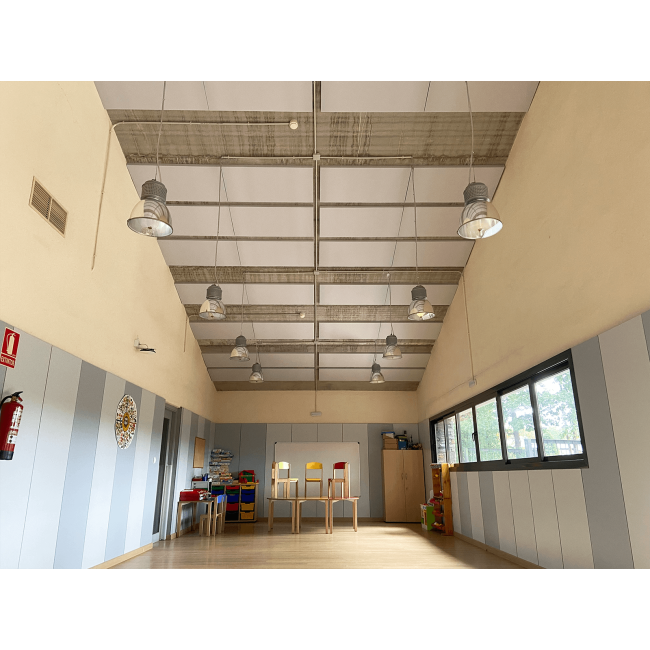

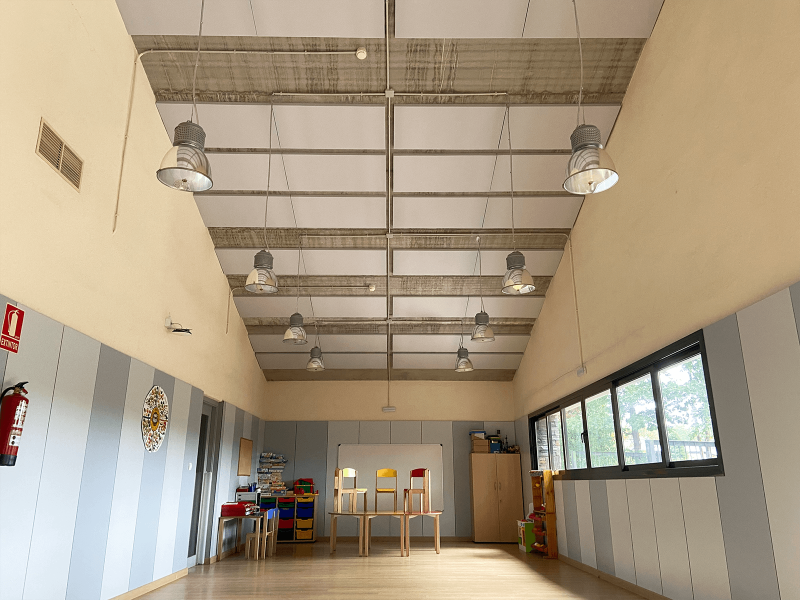

The XL format makes it particularly suitable for large spaces such as sports centres, pavilions, industrial buildings and churches.

What is their format?

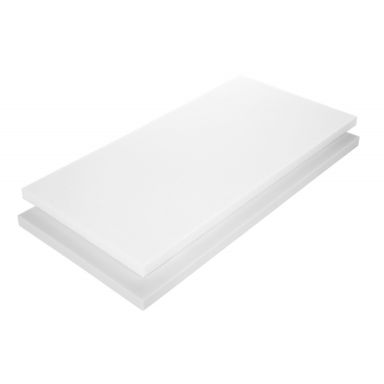

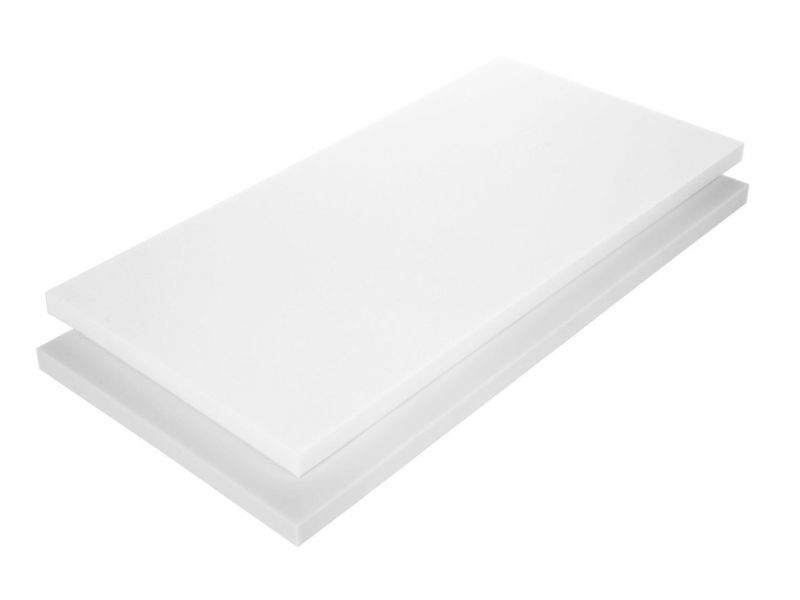

  • Panels of: 1200mm x 600mm x 40mm thickness.
  • Colour: Light grey, White or Painted (RAL chart)
  • Sold in units: area coverage = 0.72 m2
  • Normal packaging: According to units (310g / ut.)

Color option: Painted

The SLÄT XL acoustic panels can be painted in the RAL colour chart colour chosen by the client.

The "Colour: paint" tab provides detailed information about the characteristics of this option.

Quantity Discount:

EURO / UT.GreyWhitePainted
01 a 39 uts. 30.00 € 44.10 € 84.10 €
40 a 119 uts. 29.40 € 43.35 € 82.40 €
+ de 120 uts. 28.80 € 42.45 € 80.75 €
POUND / UT.GreyWhitePainted
01 to 39 uts. 28.40 £ 41.90 £ 77.20 £
40 to 119 uts. 27.70 £ 40.20 £ 75.40 £
+ of 120 uts. 27.00 £ 39.80 £ 73.80 £

How is it installed?

It is self-installable, with no need for work; the Slät XL acoustic panel is fastened to walls and ceilings* with our Skac Adhesive. With a weight of only 300 g per panel, no special instructions are required, and it is very easy to install.

* Walls: it is advisable for the panels not to be accessible to people, to prevent damage/injury.

How much do I need?

For a simple and effective solution, we have prepared a mini-guide that will help you to determine easily the panels that you need for your particular case, based on the m2 of flooring surface, room height and the level of comfort to be obtained.

First, we have to choose from three levels of comfort:

Live Grade with fewer sound absorbers (less expensive), we get a more lively atmosphere, recommended for bars, cafes, canteens, sports halls, arcades, etc.
Medium Standard grade; a balanced ratio between the quantity and grade of sound absorption; defined to achieve an adequate level of sound comfort for holding conversations without raising the voice in: restaurants, classrooms, and offices.
Dark Higher degree of sound absorption, to achieve the lowest reverberation level; it is recommended for large offices, libraries, waiting rooms, etc.



Then, based on the comfort level selected above, we will set the % of room surface that must be covered with acoustic panels.

Height / GradeLiveMediumDark
up to 3m 35 % 50 % 65 %
up to 4m 45 % 60 % 75 %
up to 5m 60 % 70 % 80 %



Finally, with some simple math calculations, we determine the necessary units of Slät panels to be installed.

Area to be covered = m2 of room x % of coverage.

The necessary units of Slät panels will be the result of dividing the area to be covered by 0.72m2 (area occupied by one Slät XL panel).


Let's see an example:

Restaurant with a total flooring surface of 200m2, which has 120m2 for dinning zone; the total height is 3m in dinning zone.
For this kind of application, we want to get a 'medium' comfort grade; that it's coverage of 50% for spaces up to 3m of height.
Area to be covered will be = 120m2 x 50% = 60m2.
Necessary units of Slät XL panels = 60m2 / 0.72m2 = 84 units.

The quantity calculations indicated above is a simplified selection guide. If you have any question or you want that our acousticians make you a customized proposal, please contact-us!.

Tell us what kind of place this is, size / height and we will make an appropriate proposal for the supply of acoustic panels.

Physical properties



Technical Drawing

Description: Fireproof acoustic panel
Material: Acoustic foam Basotect® G
Composite: Flexible open-cell melamine resin
Colour: White or Light grey
Density: 9 Kg/m3 (ISO 845)
Compression resist.: 5-10 kPa (ISO 3386-1)
Traction resist.: >90 kPa (ISO 1798)
Fire Rating:
  • B1 (DIN 4102-1)
  • M1 (NF P 92-507)
  • Clase 1 (BS 476/7)
  Technical Drawing Slät XL panel

® Registered trademark of BASF SE

Sound absorption

Absorption coefficients in octave bands (ISO 354):

125 Hz250 Hz500 Hz1 kHz2 kHz4 kHz
0.17 0.43 0.75 0.93 0.99 1.02

* absorption coefficients in third octave are available in the data sheet.



Global coefficients:

NRC 0.80 [ASTM C423]
SAA 0.78 [ASTM C423-09a]
α mid 0.89 [DB-HR]
α w 0.75(H)
Class C [ISO 11654]

  DOWNLOADS:

Data sheet [.PDF]

Color option: PAINTED ACOUSTIC PANELS
SKAC - Color spin   The acoustic panels are painted with flame retardant paint, through an exclusive technique developed to not alter the acoustic performance of the panel, thus avoiding the usual loss of absorption capacity that occurs with traditional painting techniques.

Painting specifications - Skum Acoustics

  • · Flame retardant paint: Class A, s2-d0.
  • · Finish: satin.
  • · Maintains the acoustic performance.
  • · Available to choose color according to RAL chart.

How to order the painted panels?

  • 1. Make an order with the total of painted panels that you want (minimum order 24 pcs.).
  • 2. Send us an email indicating your order number and the RAL reference/s* that you want.
  • * It is possible to combine different colors in the same order (minimum 12 units per color).
Color Chart

Below, a small selection of painted panels according to the RAL color chart.

RAL1001 RAL1015 RAL1018 RAL2008
RAL1001 RAL1015 RAL1018 RAL2008
RAL3003 RAL3017 RAL3028 RAL4006
RAL3003 RAL3017 RAL3028 RAL4006
RAL5015 RAL5018 RAL5019 RAL5024
RAL5015 RAL5018 RAL5019 RAL5024
RAL6017 RAL6019 RAL6029 RAL6034
RAL6017 RAL6019 RAL6029 RAL6034
RAL7011 RAL7045 RAL8017 RAL9004
RAL7011 RAL7045 RAL8017 RAL9004

Attention: Please keep in mind that the displayed colours may vary from the real panels depending on the specific properties of your monitor.
