Cirkel

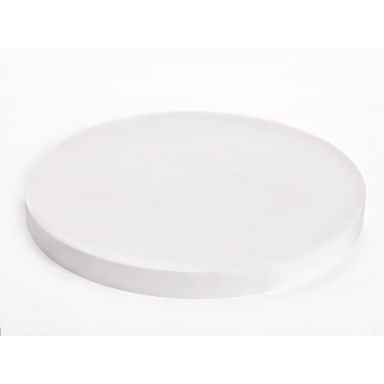

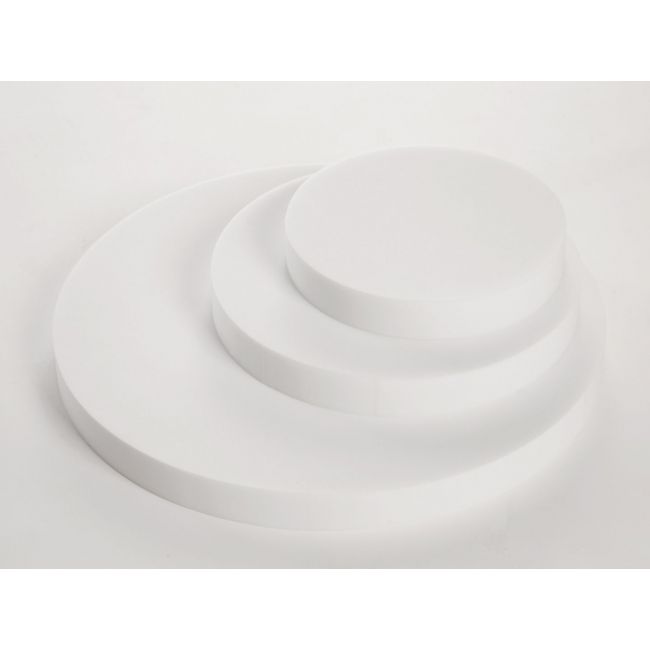

Basotect acoustic panel, circular diam. 600mm, 400mm and 300mm (50mm thickness).

Self-installable, glued assembly with Skac Adhesive. Sold in units!

Basotect® acoustic foam, white, pearl grey; Fire rating: Class 1, Bs1d0.

More details...

Availability : Available


12,75 € VAT incl.


logo_imagen

Accessories Cirkel


logo_imagen

What are they?

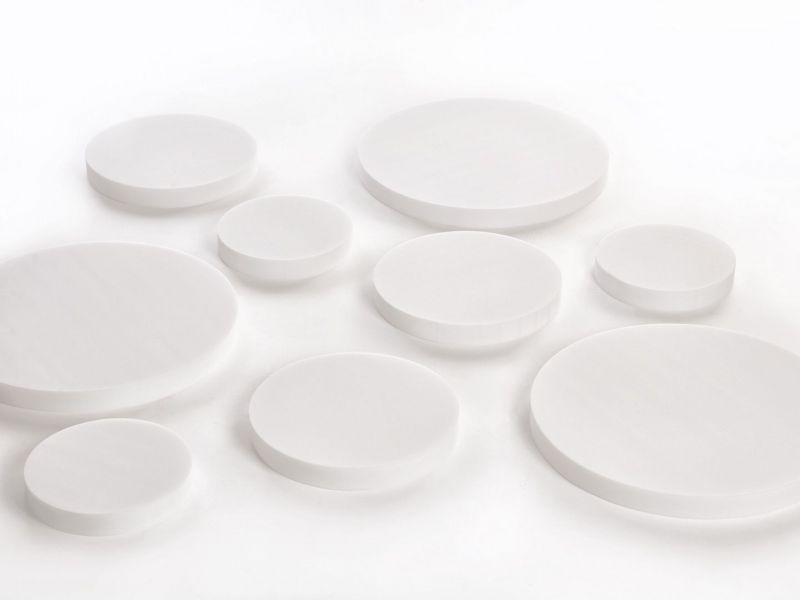

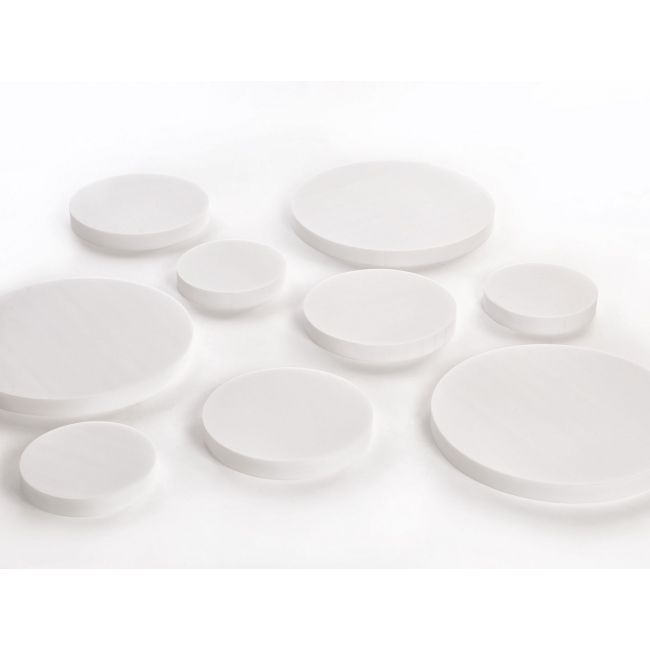

The Basotect® acoustic panel CIRKEL, is a fireproof sound absorber with circular format of 50mm of thickness, available in multiple diameters: 600mm, 400mm and 300mm, specially indicated to solve the problems of reverberation in: restaurants, cafe, classrooms, school canteens, offices, libraries, music halls, schools ...

Made by Basotect® melamine resin foam, it has a high sound absorption capacity, excellent durability and fire resistance of Class B-s1,d0 (Class 1), mandatory requirement for installation on ceilings and walls of public premises.

The design in circular format of different diameters allows great aesthetic adaptability with a multitude of possible combinations, a really quick and simple installation.

® Registered trademark of BASF SE

Important!

Basotect sound absorber panel with classification of reaction to fire: Class B-s1,d0 (Class 1).

The panels are suitable for installation in public places.

What is the application used for?

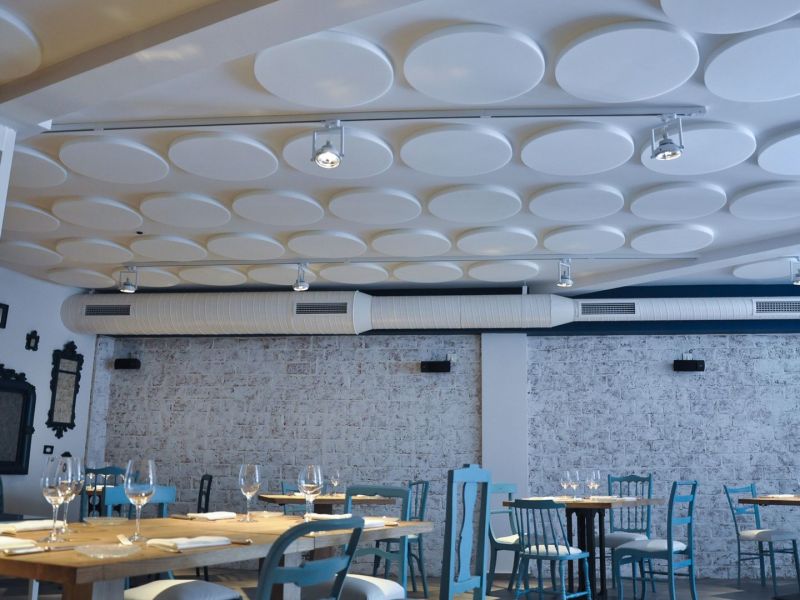

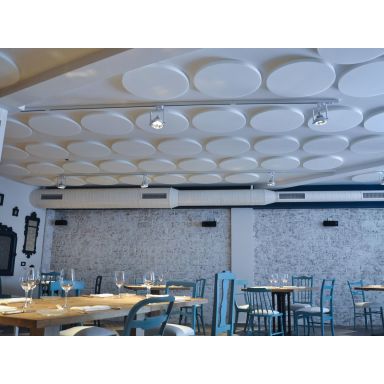

CIRKEL, is an excellent soundproofing solution, ultra-simple, self-installable, developed to solve the problems derived from the excess of reverberation (echo) existing in public places such as: restaurants, bars, cafe, celebration venues, classrooms, dining rooms, offices, meeting room, call centre, co-working, libraries, clinics, training academies, dance schools, etc. in a fast, efficient and economical way.

What is their format?

  • Panels of: 50mm thickness and diameters of: 600mm, 400mm and 300mm.
  • Colour: Light Grey or White
  • Sold in units: Coverage area = D60 (0.28 m2/u.), D40 (0.13 m2/u.), D30 (0.07 m2/u.).
  • Normal packaging: According to units

Finishing options

CIRKEL acoustic panels can be supplied painted in a wide variety of colours (single or combined), or they can be coated with an exclusive textile covering for a superior finish in a wide range of colours.
We can also manufacture custom panels with diameters up to 2.500mm and 500mm thick.

Contact us to offer you a customized solution for your needs.

Quantity Discount:

diameter ->D60D40D30
EURO / UT.GreyWhiteGreyWhiteGreyWhite
01 a 39 pcs. 19.45 € 26.95 € 9.30 € 12.75 € 5.75 € 7.80 €
40 a 119 pcs. 18.80 € 26.10 € 9.00 € 12.35 € 5.55 € 7.55 €
+ de 120 pcs. 18.40 € 25.50 € 8.80 € 12.05 € 5.45 € 7.40 €
diameter ->D60D40D30
POUND / UT.GreyWhiteGreyWhiteGreyWhite
01 a 39 pcs. 17.85 £ 24.70 £ 8.55 £ 11.65 £ 5.35 £ 7.15 £
40 a 119 pcs. 17.20 £ 23.90 £ 8.25 £ 11.35 £ 5.15 £ 6.95 £
+ de 120 pcs. 16.85 £ 23.35 £ 8.05 £ 11.10 £ 5.05 £ 6.80 £

How is it installed?

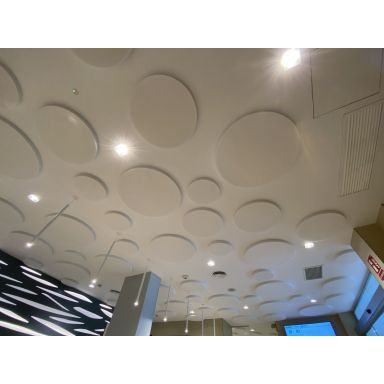

The CIRKEL acoustic panels are installed in a really easy, fast and clean way. They are installed directly fixed to the ceiling or walls * using our mounting adhesive Skac Adhesive; It is only necessary to apply adhesive on the back of the panel, place the panel on the surface and press lightly with the palm of your hand, in 10 seconds it will be installed.

Thanks to its circular design, it is not necessary to carry out a previous approach of installation, it is simply a matter of finding a space and install the corresponding diameter panel in a completely random way.

It is recommended to install the largest acoustic panels (D60) first, and gradually reduce the diameter until filling the available spaces with the smaller panels.

* Walls: It is recommended that the panels not be accessible to the people, to prevent them from being damaged.

How much do I need?

For a simple and effective solution, we have prepared a mini-guide that will help you to easily determine the panels that you need for your particular case, based on the m2 of flooring surface, room height and the level of comfort you want to obtain.

First, we have to choose from three levels of comfort:

Live a grade with fewer sound absorbers (less expensive), we get a more lively atmosphere, recommended for bars, cafes, canteens, sports halls, arcades, etc.
Medium the standard grade; a balanced ratio between the quantity and grade of sound absorption; defined to achieve an adequate level of sound comfort for holding conversations without raising ones voice: restaurants, classrooms, and offices.
Dark a higher degree of sound absorption, to achieve the lowest reverberation level; it is recommended for large offices, libraries, waiting rooms, etc.



Then, based on the comfort level selected above, we will set the % of room area that must be covered with acoustic panels.

Height / GradeLiveMediumDark
up to 3m 30 % 40 % 55 %
up to 4m 35 % 55 % 65 %



Finally, with a simple multiplication, we will determine the total area (m2) of CIRKEL panels that have to be installed.

Total area = m2 of room x % of coverage.

Once we know the total area, we must configure the number of panels of each different diameter, for this, we will need the area that occupies each of the available diameters:

  • D60 - 0,28 m2
  • D40 - 0,13 m2
  • D30 - 0,07 m2

The combination of the different sizes is a personal decision with a purely aesthetic purpose. However, we show you a possible distribution as a recommendation:
60% of the total area will be covered with panels D60 + 30% with panels D40 and the remaining 10% with panels of smaller size D30.


Let's see a practical example:

Restaurant with a total area of 200m2, of which 120m2 are destined to the area of tables (diners); the total height of room is 3m.
We want to get a 'medium' comfort grade; that it's coverage of 40% for spaces up to 3m of height.
The total surface to be covered with CIRKEL will be = 120m2 x 40% = 48m2.

We will combine panels of D60 (60%), D40 (30%) and D30 (10%):

  • Nº panels D60 -> 48m2 x 60% = 28,8m2 -> 28,8m2 / 0,28m2 == 102 units
  • Nº panels D40 -> 48m2 x 30% = 14,4m2 -> 14,4m2 / 0,13m2 == 110 units
  • Nº panels D30 -> 48m2 x 10% = 4,8m2 -> 4,8m2 / 0,07m2 == 68 units

The quantity calculations indicated above is a simplified selection guide. If you have any queries or you want that our acousticians make you a customized proposal, please contact us!.

Tell us what kind of place this it is, size / height and we will make an appropriate proposal for the required amount to be supplied of acoustic panels.

Physical properties



Technical Drawing

Description: Fireproof acoustic panel
Material: acoustical foam Basotect® G
Composite: Flexible open-cell melamine resin
Colour: White or Light grey
Density: 9 Kg/m3 (ISO 845)
Compression resist.: 5-10 kPa (ISO 3386-1)
Traction resist.: >90 kPa (ISO 1798)
Fire Rating:
  • B1 (DIN 4102-1)
  • M1 (NF P 92-507)
  • Clase 1 (BS 476/7)
  • Clase B-s1,d0 (UNE-EN 13501-1)
  Technical Drawing
		Cirkel panel

® Registered trademark of BASF SE

Sound absorption

Absorption coefficients in octave bands (ISO 354):

125 Hz250 Hz500 Hz1 kHz2 kHz4 kHz
0.18 0.55 0.87 0.94 0.98 0.98

* absorption coefficients in third octave are available in the data sheet.



Global coefficients:

NRC 0.85 [ASTM C423]
SAA 0.84 [ASTM C423-09a]
α mid 0.93 [DB-HR]
α w 0.85(H)
Clase B [ISO 11654]

  DOWNLOADS:

Data sheet [.PDF]
